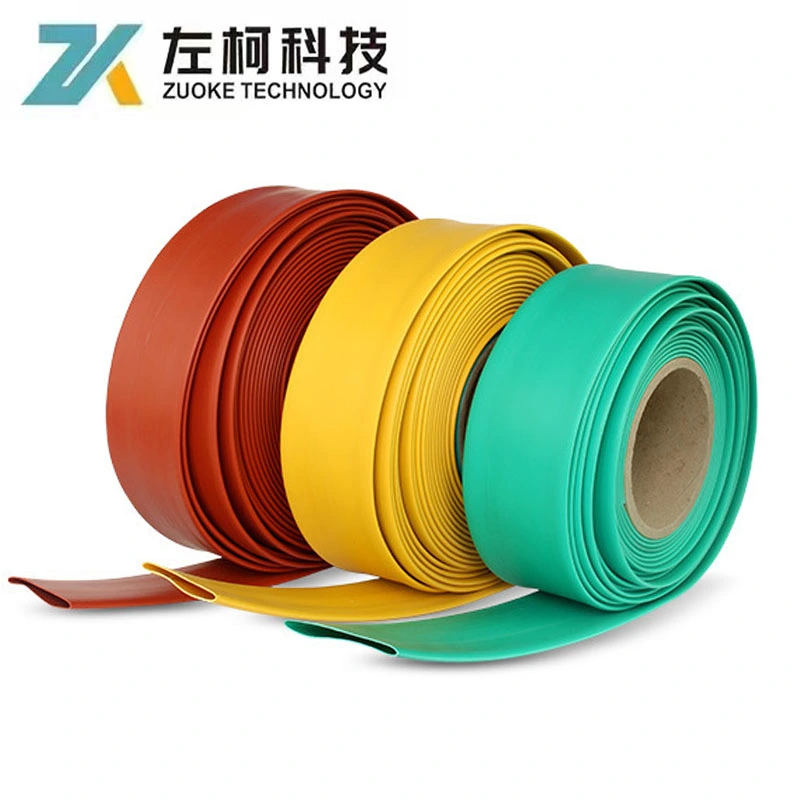

10kv High voltage Heat shrink tube
φ20~φ150
It is mainly used for insulation protection of high voltage electrical can cable
Quantity:
Manufactured from cross linked polyolefin.
Used to offer insulation protection for busbar in switchgear and substation.
Protects against short circuit and electrical leakage caused by small animals.
Reduces busbar clearance requirements.
RoHS compliant.
Shrink temperature:start at 70ºC,and fully recovered at 130ºC.
Color:yellow,red,green,blue,black
Used to offer insulation protection for busbar in switchgear and substation.
Protects against short circuit and electrical leakage caused by small animals.
Reduces busbar clearance requirements.
RoHS compliant.
Shrink temperature:start at 70ºC,and fully recovered at 130ºC.
Color:yellow,red,green,blue,black
Technical Data
| Property | Test Method | Standard Value |
| Heat Shock | 160ºC,4h | No Crack |
| Tensile Strength | ASTM-D-638 | ≥8MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength Variation After Heat Aging(130ºCx168h) | ASTM-D-5510 | ≤±20% |
| Elongation at Break Variation After Heat Aging(130ºCx168h) | ASTM-D-5510 | ≤±20% |
| Flammability(Oxygen Index) | IEC 4589 | ≥30% |
| Hardness(Shore A) | ISO 868 | ≤90 |
